Technical data
| pneumatic motor: | ATLAS COPCO |
|---|---|
| Performance: | 650 Watt |
| Pressure: | 6,3 bar |
| Compressed air needs: | 17 l/s |
| Weight: | 5,3 kg |
| Width of the Chain Cover: | 30 mm |
| Width of the Chain: | 20 mm |
| Dimensions: | 48cm x 15,5cm x 20cm |
| HS Code: | 84418000 |
You need Accessories?
Product discription
“Our new premium class“

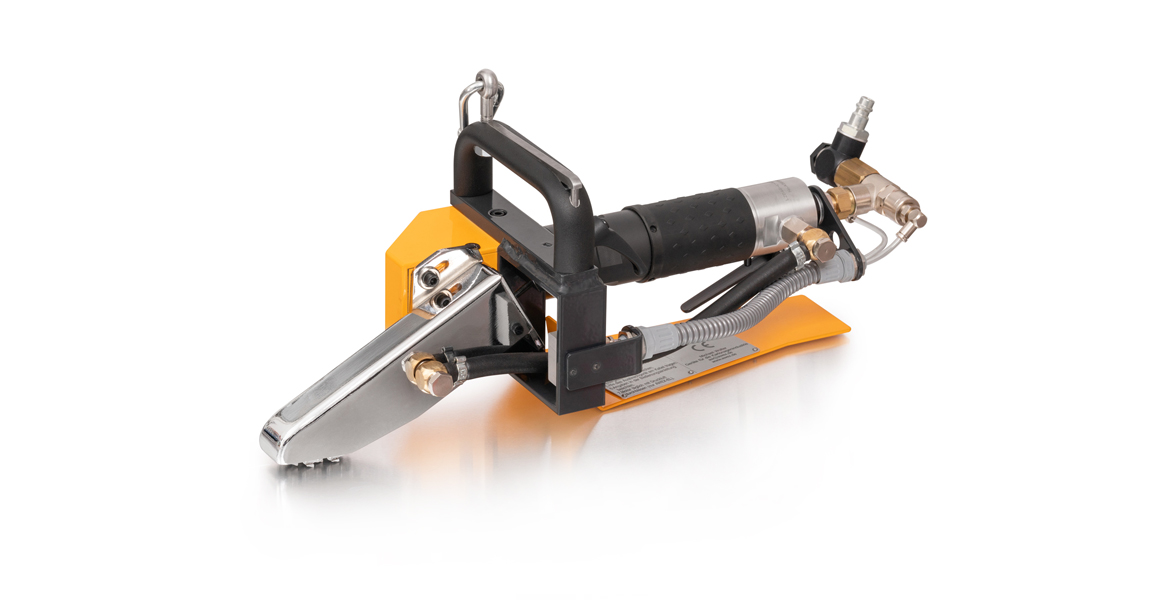

Our new premium class is the compressed air-operated AWEX-T4 2hand carton-stripper.The AWEX-T4 2hand with its 650 watt
ATLAS COPCO motor is our most powerful carton-stripper. Thanks to its ATLAS COPCO compressed air drive, the AWEX-T4
2hand is very robust and very low-maintenance. Our decades of experience with ATLAS COPCO compressed air motors have
also convinced our customers of the very good performance and high quality of these motors. The AWEX-T4-2hand is
equipped with a two-hand safety control. This version requires both hands to press levers on the AWEX to start the carton-
stripper. If a lever is no longer pressed, the device switches off immediately.
For the AWEX-T4 2hand we recommend to order a lubrication unit too. (Filter with water separator, reduction valve, pressure gauge, air line lubricator, mounting bracket and screws.) It is absolute necessary to use a compressed air lubrication unit to protect the air driven motor.
AWEX-T4 2hand Application
The AWEX-T4 2hand is designed to break out the outer punching waste from cardboard, microwave, corrugated cardboard,
plastic corrugated cardboard and similar formats from approx. 150g/m². The AWEX-T4 is suitable for particularly large and thick
punching waste and is used wherever a lot of pressure has to be exerted on the punching waste to be removed. At the same
time, it completely covers the properties and possible uses of the slightly less powerful AWEX-T3 (2hand) and AWEX-T2
(2hand).
For the main use with corrugated cardboard, we also offer this model with our special chain type T2W instead oft he standard
chain type T2.
For optimal removal, the edge of the waste must be at least 8mm wide for cardboard and microwaves and at least 20mm wide
for corrugated cardboard.
The device is delivered ready for connection and with a safety quick-connect coupling for a hose inner diameter of 9mm. Tools
for changing the chain and an operating manual (German or English) including a spare parts list are included with the device.
Depending on availability, we reserve the right to deliver this device in yellow, gray or red paint.
AWEX Carton-Stripper
OPTIMIZE THE STRIPPING PROZESS THE MOST EFFICIENT SOLUTION TO REMOVE DIECUT-WASTE.
Lightning-fast stripping of the outer die-cut waste from carton, microwave, corrugated board and plastic corrugated cardboard stacks with our AWEX carton-strippers.
Finish the time‐consuming and stressful waste‐stripping by hand. Our AWEX carton‐strippers allows lightning fast removal of die‐cut waste from folding carton, e‐flute, cardboard, microwave‐ and corrugated board. When breaking out the die‐cut waste with our AWEX carton‐strippers, the sheets remain exactly stacked as they left the die‐cutter. Designed to meet the requirements of our customers, our AWEX carton‐strippers have proven their worth in cartonboard and board processing worldwide for 35 years.
Prerequisite for using our technology is that the outside trim must be cut into trim sections. Except from this is the clutch edge. This will be stripped out reciprocally, on the left and right side. Please see also the enclosed principle picture for waste segments. Subdivide the waste edge in a way that the chain can operate at the widest part of the waste edge. Furthermore, the smaller the number of nicks (to heed at new forms), the faster the stripping operation will go. The AWEX carton‐stripper removes the trim section by section at high speed. A section of the stack of 250 sheets high can be removed in one second for instance. This performance results in a substantial lowering of manual stripping cost.
The principle and handling is very simple.
The chain of the AWEX carton‐stripper is placed with some pressure on the outer edge of the waste before the device is switched on.
The rotating, hardened special-chain strips the exterior trim from the die‐cut sheet at high speed.
Slide down the AWEX carton‐stripper with some pressure on the waste trim.
Depending on the number of nicks and the breaks of the die‐cut waste, you have to do a right / left combination with the AWEX carton‐stripper to break out the die‐cut waste along the full length of the stack. A chrome‐plated cover over the chain prevents damage to the sheets and helps you to slide down the stack easily.
