Technical data
| pneumatic motor: | ATLAS COPCO |
|---|---|
| Performance: | 500 Watt |
| Pressure: | 6,3 bar |
| Compressed air needs: | 14 l/s |
| Weight: | 4,55 kg |
| Width of the Chain Cover: | 30 mm |
| Width of the Chain: | 20 mm |
| Dimensions: | 43cm x 15,5cm x 20cm |
| HS Code: | 84418000 |
You need Accessories?
Product discription
“Our compact power pack“

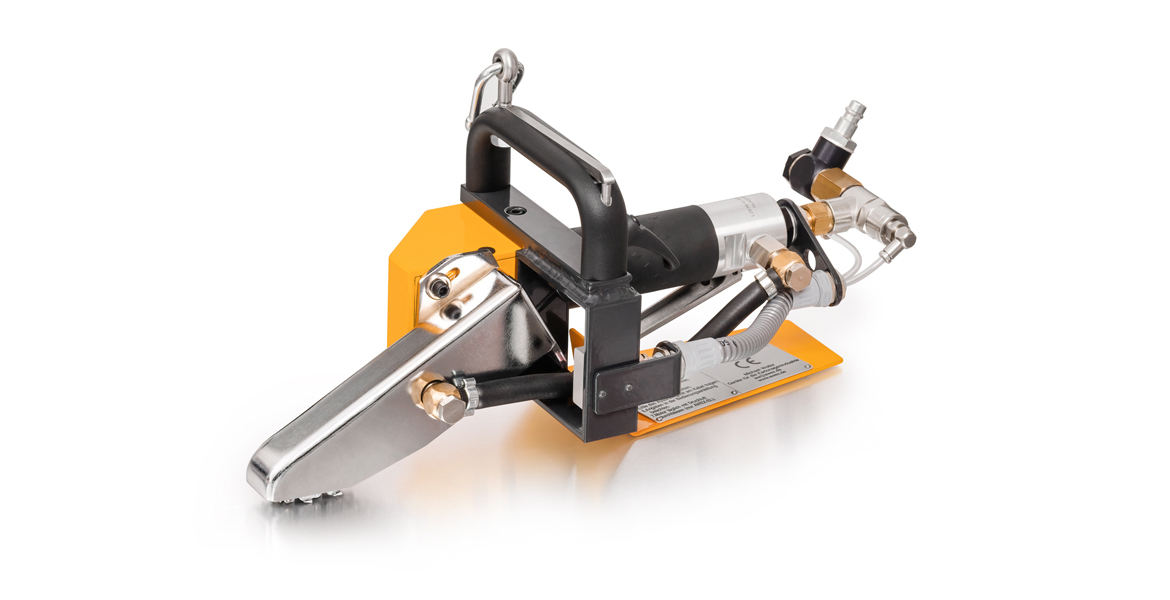

Our new compact carton-stripper is the air-powered AWEX-T3 2hand carton-stripper. Despite its 500-watt ATLAS COPCO
motor, the AWEX-T3 2hand is only 43 cm long and one of the most compact AWEX carton-strippers after the AWEX-T3.
Thanks to its ATLAS COPCO compressed air motor, the AWEX-T3 2hand is very robust and very low-maintenance.
Our decades of experience with ATLAS COPCO compressed air motors have also convinced our customers of the very good
performance and high quality of these motors. We are convinced that the AWEX-T3 2hand will become the new top-of-the-
range model that will delight customers worldwide.
The AWEX-T3-2hand is equipped with a two-hand safety control. This version requires both hands to press levers on the
AWEX to start the carton-stripper. If a lever is no longer pressed, the device switches off immediately.
The AWEX-T3 2hand will replace the previous model AWEX-T2 2hand in the future.
For the AWEX-T3 2hand we recommend to order a lubrication unit too. (Filter with water separator, reduction valve, pressure gauge, air line lubricator, mounting bracket and screws.) It is absolute necessary to use a compressed air lubrication unit to protect the air driven motor.
AWEX-T3 2hand Application
The AWEX-8AC is designed to remove the external punching waste from cardboard, microwave, corrugated cardboard, plastic
corrugated cardboard and similar formats from approx. 150g/m². The AWEX-8AC carton-stripper is used wherever particularly
narrow and deeper die-cutting waste needs to be removed. The AWEX-8AC should only be used for this application because of
its filigree and narrow chain. An on-site conversion from the narrow chain to the wider T2 chain is not possible for technical
reasons.
For optimal removal, the edge of the waste must be at least 8mm wide for cardboard and microwaves and at least 20mm wide
for corrugated cardboard.
The device is delivered ready for connection and with a quick-connect coupling for a hose inner diameter of 9mm. Tools for
changing the chain and an operating manual (German or English) including a spare parts list are included with the device.
Depending on availability, we reserve the right to deliver this device in yellow, gray or red paint.
AWEX Carton-Stripper
OPTIMIZE THE STRIPPING PROZESS THE MOST EFFICIENT SOLUTION TO REMOVE DIECUT-WASTE.
Lightning-fast stripping of the outer die-cut waste from carton, microwave, corrugated board and plastic corrugated cardboard stacks with our AWEX carton-strippers.
Finish the time‐consuming and stressful waste‐stripping by hand. Our AWEX carton‐strippers allows lightning fast removal of die‐cut waste from folding carton, e‐flute, cardboard, microwave‐ and corrugated board. When breaking out the die‐cut waste with our AWEX carton‐strippers, the sheets remain exactly stacked as they left the die‐cutter. Designed to meet the requirements of our customers, our AWEX carton‐strippers have proven their worth in cartonboard and board processing worldwide for 35 years.
Prerequisite for using our technology is that the outside trim must be cut into trim sections. Except from this is the clutch edge. This will be stripped out reciprocally, on the left and right side. Please see also the enclosed principle picture for waste segments. Subdivide the waste edge in a way that the chain can operate at the widest part of the waste edge. Furthermore, the smaller the number of nicks (to heed at new forms), the faster the stripping operation will go. The AWEX carton‐stripper removes the trim section by section at high speed. A section of the stack of 250 sheets high can be removed in one second for instance. This performance results in a substantial lowering of manual stripping cost.
The principle and handling is very simple.
The chain of the AWEX carton‐stripper is placed with some pressure on the outer edge of the waste before the device is switched on.
The rotating, hardened special-chain strips the exterior trim from the die‐cut sheet at high speed.
Slide down the AWEX carton‐stripper with some pressure on the waste trim.
Depending on the number of nicks and the breaks of the die‐cut waste, you have to do a right / left combination with the AWEX carton‐stripper to break out the die‐cut waste along the full length of the stack. A chrome‐plated cover over the chain prevents damage to the sheets and helps you to slide down the stack easily.
